Swing Corner Bracket – Oblique (Square)
$95.00
Swing Corner Connection Bracket – Oblique (Square Smart Line)
Strong, Secure, and Reliable

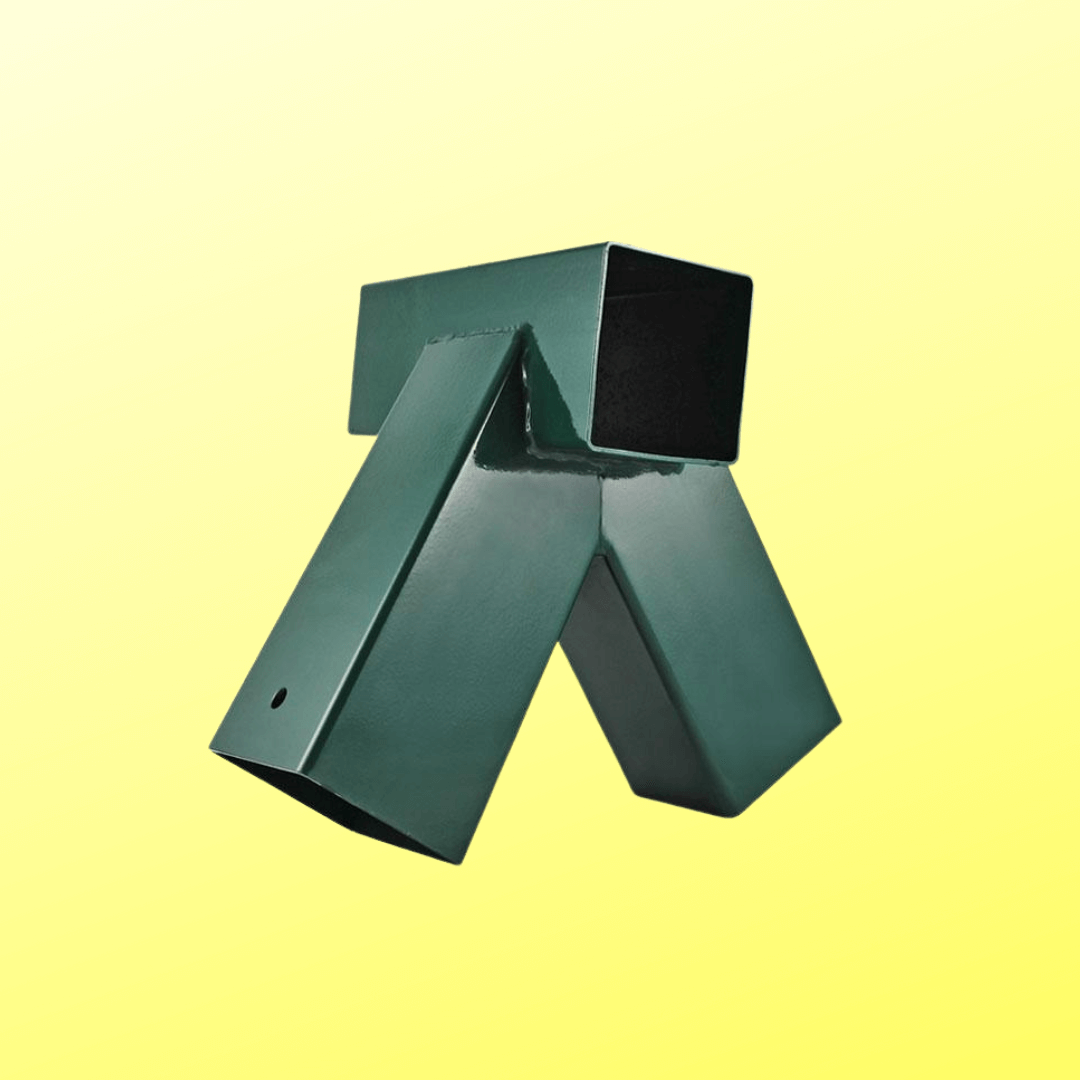

Complete your home swing set with the KBT Swing Beam & Legs Bracket. Designed to safely, securely and easily join swing beams and legs, this bracket ensures your swing set is both stable and long-lasting.

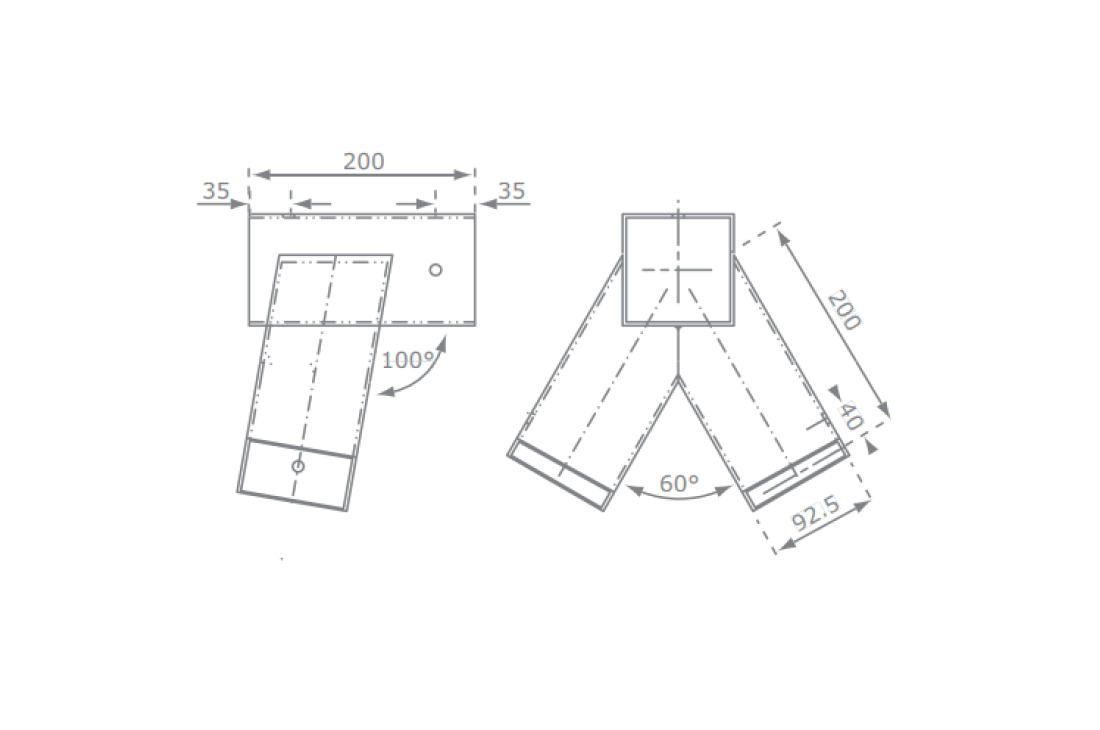

Quality Construction: The connection plates are made of 2mm thick, powder-coated steel, providing durability and resistance to the elements. The tubes measure 200mm in length, with bore holes for fixation at 10mm.

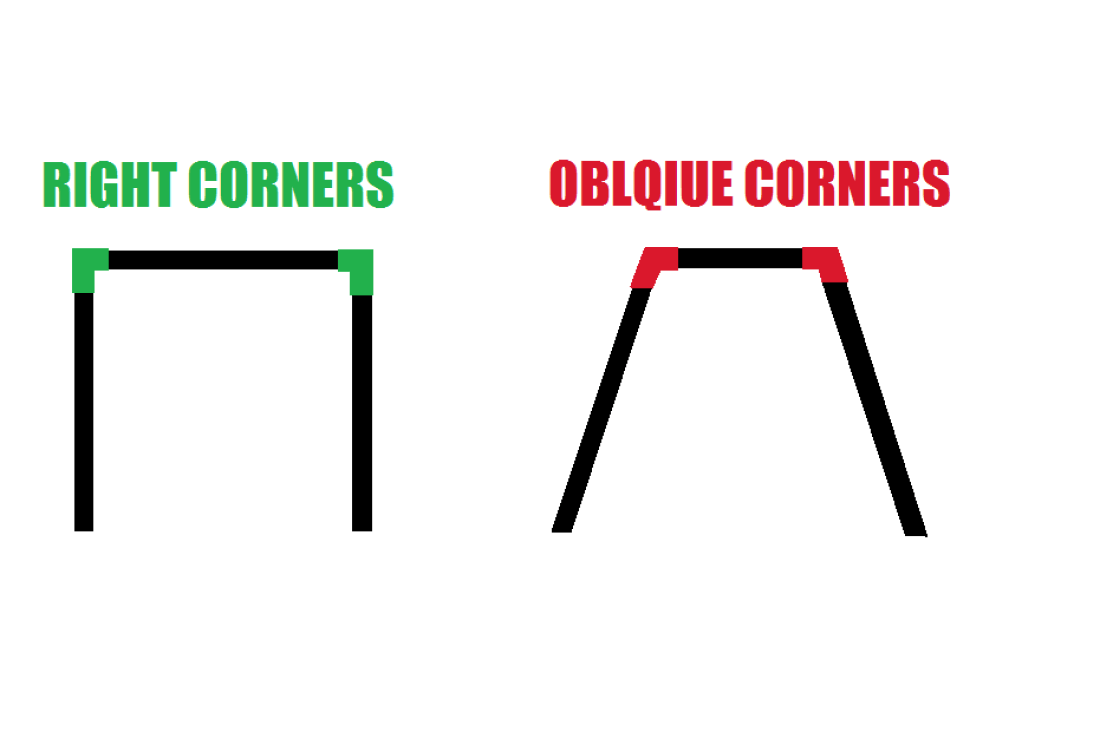

Angles for Stability: The angle between the downward-facing legs is 60 degrees, while the oblique angle is 100 degrees, optimizing the structure's strength and stability.
Timber not included
Key Features
Specifications
Installation
Warranty Details
Inspection and Maintaince
All play equipment should be inspected regularly. Swings, slides and climbing things this is more important for. Recommendations below:
The frequency of inspection and maintenance will vary with the type of equipment or materials used or other factors (e.g. Heavy use, coastal location, air pollution, age of equipment)
Routine visual inspection (weekly to monthly) - Always check that the bolts and nuts are securely fastened. Check for any missing parts.
Operational inspection (1 to 3 months) - Check the stability of the construction. - Check every part for excessive wear and replace when necessary.
Annual inspection (1 to 2 times per year) - Check for rust and corrosion. - Check every part for excessive wear and replace when necessary.
Pickup?
No pickup is available for courier sized items. Unfortunately it isn't practical for this due to location & timing with this warehouse.
Shipping details
Items are sent on the 10am courier - any orders after this, will be sent the following working day. If the item is urgent, please contact us to see what the fastest option is with timing.
Armex generally takes 2-5 days for delivery.
under 1kg $6
1-5kg $11
5-10kg $20
10-15kg $30
15-20kg $45
Over 20kg $60
NZ post generally takes 1-2 days for delivery
under 1kg $9
1-5kg $15
5-10kg $28
10-15kg $50
15-20kg $75
20kg $95
Returns
If you change your mind on the product, we are happy to return it, provided it is in the original packaging, unused and new condition.
There is a 10% admin fee to cover warehouse costs + freight in both directions is at your cost. We are happy to assist by sending you a courier label to attach to the returning item and arranging for courier to collect from your address.
Refund is issued after the item has arrived at the warehouse.
